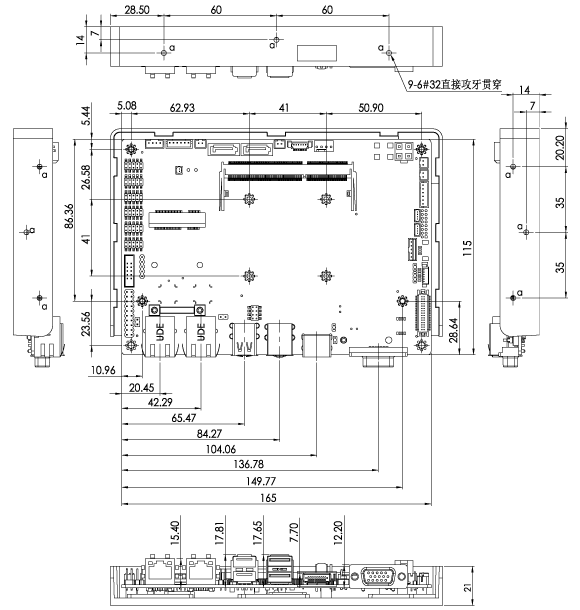

| Dimensions |
| Dimensions |
115mm x 165mm |
| Display |
| Display Output |
1 x VGA (up to 2048x1536@60Hz)
1 x HDMI (up to 3840x2160@60Hz)
1 x 18/24-bit dual-channel LVDS (up to 1920x1200@60Hz) |
| Environment |
| Humidity |
5% ~ 95%, noncondensing |
| Operating Temperature |
0°C ~ 60°C |
| Storage Temperature |
-10°C ~ 70°C |

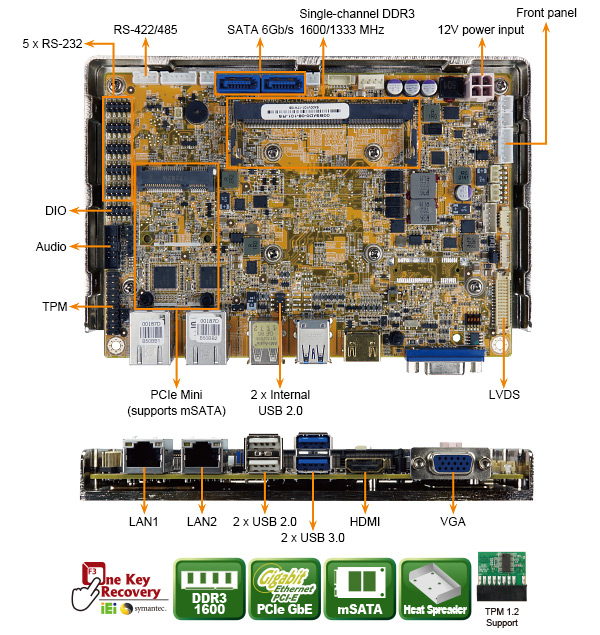

| I/O Interface |
| Ethernet |
LAN1: Intel® I210-AT PCIe controller with NCSIsupport.
LAN2: Intel® I211-AT PCIe controller. |
| I/O Interface |
1 x KB/MS (1x6 pin)
4 x USB 2.0 (2x4 pin, P=2.0)
1 x RS-422/485 (1x4 pin, P=2.0)
5 x RS-232 (2x5 pin, P=2.0)
2 x SATA 6Gb/s with 5V SATA power connector (no RAID) |
| I/O Interface |
| I/O Interface |
1 x Digital I/O(8-bit digital I/O (2x5 pin)) |
| 2 x Ethernet |
1 x Expansion( Full-size PCIe Mini card slot
(supports mSATA co-lay SATA port 2)) |
1 x Front panel(1 x Power LED & HDD LED (1x6 pin)
1 x Power button (1x2 pin)
1 x Reset button (1x2 pin)) |
| 1 x HDMI(up to 3840x2160@60Hz) |
| 1 x I²C(1x4 pin) |
| 1 x Internal Audio(2x5 pin) |
| 5 x Internal RS-232(2x5 pin, P=2.0) |
| 1 x Internal RS-422/485(1x4 pin, P=2.0) |
| 4 x Internal USB 2.0(2x4 pin, P=2.0) |
| 1 x KB/MS(1x6 pin) |
| 2 x SATA 6Gb/s(With 5V SATA power connector (no RAID)) |
| 1 x SMBus(1x4 pin) |
| 2 x USB 2.0 |
| 2 x USB 3.0 |
| 1 x VGA(up to 2048x1536@60Hz) |
| Internal Connector |
| Internal Connector |
1 x S/PDIF (1x4 pin)
1 x TPM (2x10 pin)
1 x System smart fan (1x4 pin) |
| Option |
| iRIS |
1 x iRIS-1010 slot (support by request) |
| Power |
| Power consumption |
12V@1.02A (AMD GX-415GA 1.5GHz CPU with 1600 MHz 8 GB DDR3 memory) |
| Power Supply |
12V only DC input
1 x Internal power connector (2x2 pin)
Support AT/ATX mode. |
| System |
| CPU |
AMD® Embedded G-Series “LX” SoC
GX-218GL on-board Soc (1.8GHz, dual core, 1MB cache, TDP=15W)
GX-215GL on-board Soc (1.5GHz, dual core, 1MB cache, TDP=15W)
GX-210KL on-board Soc (1.0GHz, dual core, 1MB cache, TDP=4.5W) |
| Memory Max. |
One 204-pin 1600/1333 MHz singlechannel DDR3 & DDR3L SDRAM unbuffered
SO-DIMM slot supports up to 8 GB |
| Watchdog Timer |
| Watchdog Timer |
support 1~255 sec. system reset |
| Weight |
| Weight |
NW: 350g |
