HYPER-RK39

The new released IEI HYPER-RK39 Pico-ITX SBC is designed with compact size and equipped with Rockchip RK3399 chipset, providing onboard 16GB eMMC and 2GB LPDDR3 memory. It also features 4K HDMI and eDP dual display to make it ideal for intelligent digital signage, kiosk and POS applications. For easier customization, the HYPER-RK39 is pre-installed with Android 7.1 or Ubuntu 16.04 allowing you to develop your own applications to meet various demands.

RockChip RK3399 Processor

Overview

● CPU: Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
● Mali-T864 GPU (45% more than Mali-T628)
● 4K UHD H265/H264/VP9
● Dual USB Type-C and USB 2.0
● HDMI 2.0a with HDCP 2.2.

Powerful, but low energy

Normally, the CPU will run A53 for low power consumption. If the application needs more computing power, A72 CPU will increase performance by 50%.

+45% performance than Mali-T628

RK3399 has more powerful GPU and supports 4K resolution video decode.

Supported OS

IEI products with RK3399 family CPU support dual OS with full API/SDK, making it easy to develop your own application on Android or Linux environment.
• Android 7.1 (Android 8.1 coming soon)
• Linux Ubuntu 16.04

Applications for RK3399

RK3399 has features of high performance, high expansion, all-round application and it will empower AI and assist the layout of industry products.

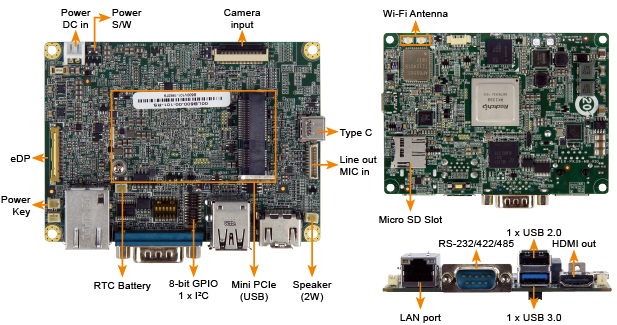

I/O Interface

Dimension

Spec Item	Description
Dimensions
Dimensions	100mm x 72mm
Display
Display Output	1 x HDMI out 1 x eDP port
Environment
Humidity	10% ~ 95%, non-condensing
Operating Temperature	-10°C ~ 50°C with air flow
Safety & EMC	CE/FCC compliant
Storage Temperature	-20°C ~ 60°C
Form factor
Form factor	Pico-ITX SBC supports Rockchip RK3399 HDMI and eDP dual display suppot OS: Android 7.1 & Ubuntu 16.04
I/O Interface
Audio I/F	1 x 2 pin for speaker (2W) 1 x 10 pin (Mic in / Line out)
Display Port	1 x HDMI out 1 x eDP port
Ethernet	1 x GbE RJ45 by RTL8211E
Expansion	1 x Full-size PCIe Mini (reserved for WWAN)
GPIO	8 bit GPIO (4 in / 4 out)
I/O Interface	1 x USB 3.0 Type A 1 x USB 2.0 Type A 1 x USB 3.0 Type-C (for OS update)
I²C	1 x I²C
Linux
Linux	Linux Ubuntu 16.04
Power
Power Jack	1 x 2 pin DC 12V in wafer connector
System
CPU	Rockchip RK3399 (Dual-core Cortex-A72 up to 1.8GHz + Quad-core Cortex-A53 up to 1.5GHz)
Memory Max.	2GB LPDDR3-1866
Storage	16GB eMMC NAND FLASH
Supported OS	Android 7.1 or Linux Ubuntu 16.04
Watchdog Timer
Watchdog Timer	YES
Weight
Weight	80 g

Item No.	Description
HYPER-RK39-R10	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, RoHS
HYPER-RK39-R10-CN	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi CN reg, ROHS
HYPER-RK39-R10-EU	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi EU reg, ROHS
HYPER-RK39-R10-TW	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi TW reg, ROHS
HYPER-RK39-R10-U	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, RoHS
HYPER-RK39-R10-U-CN	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi CN reg, ROHS
HYPER-RK39-R10-U-EU	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi EU reg, ROHS
HYPER-RK39-R10-US	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Android 7.1, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi US reg, ROHS
HYPER-RK39-R10-U-TW	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi TW reg, ROHS
HYPER-RK39-R10-U-US	PICO-ITX SBC with Rockchip 3399 Processor, 2GB LPDDR3 , 16GB eMMC Flash, Ubuntu 16.04, HDMI, eDP, GbE LAN, PCIe mini, USB3.0, USB2.0, COM, Wi-Fi US reg, ROHS
